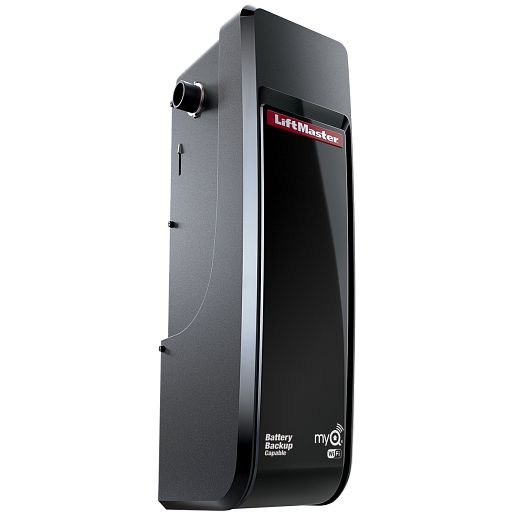

LJ8900W Commercial Garage Door Operator
The Model LJ8900W jackshaft smart commercial garage door operator is a light-duty, wall-mounted opener designed for commercial sectional doors with torsion assemblies, including standard-lift, vertical-lift and high-lift sectional doors. Rated for up to 10 cycles per hour and fewer than 25 cycles per day, this commercial jackshaft door operator for sectional doors is ideal for applications with smaller, lighter commercial sectional doors and light-duty cycle requirements.Contact us about this product
- Easily connect the operator to your facility's network via its built-in Wi-Fi.
- Using the smart myQ app, you can check if your commercial garage door is open or closed from anywhere in the world.
- Get real-time alerts via email or SMS whenever the door is used or left open. You can stay up to date and keep facility access points under remote control.
- Using myQ Facility, a cloud-based software solution, you can get real-time data and analytics on your door operation.
- The Dock Management tool allows you to analyze the load, turn and dwell time at each dock in the facility and make data-driven decisions.
- Smart door operator capabilities help to improve efficiency and productivity while reducing expenses.
- Because the LJ8900W mounts beside the door instead of overhead, it helps free up ceiling space for facilities with high ceilings, taller vehicles or overhead equipment.
- The wall-mounted design is useful for warehouses, distribution centers, auto service bays and facilities with limited overhead clearance.
- Ideal for light-duty applications, this jackshaft garage door operator is perfect for sectional doors, small warehouses, small businesses and outbuildings.
- The jackshaft operator works for doors up to 14 feet high, 18 feet wide or 180 square feet total.
- This wall-mounted door operator is designed for smaller, lighter sectional doors with light-duty cycle requirements.
- The operator can be mounted on the left or right side wall. There's no need to hang any rails, as it simply attaches to the door torsion bar.
- This light-duty commercial garage door operator features Quick-Connect™ terminals for faster wire installation.
- This device is protected from overheating with automatic thermal protection.
- It features permanent lubrication to ensure smooth operations.
- The rated duty cycle is up to 10 cycles per hour and fewer than 25 cycles per day.
- Heavy-duty 12V DC motor ensures soft start and stop operations.
- The operator runs significantly quieter than traditional AC-motor garage door openers.
- Smooth start-and-stop operation helps extend hardware life and reduce maintenance needs.
- The operator uses single-phase 120V, 60 Hz power.
- A one-button wall controller supports simpler operation.
- The operator has a door speed of 7.5 to 8.5 inches per second.
- This operator can hold and move a maximum door weight of 850 pounds.
- The steel chassis and compact plastic cover protect your device from wear and tear.
- The drive mechanism includes an internal chain and sprocket (63:1 gear reduction).
- When operating in changing weather conditions, the LJ8900W garage door operator automatically adjusts the force to regulate the amount of power needed to operate, considering friction and wear over time.
- Electronic limits help simplify setup.
- Patented absolute positioning technology ensures electronic limits remain extremely accurate, even after a power failure.
- An optional automatic door lock secures the door from manual opening once you've closed it.
- The door operator comes with a cable tension monitor, specifically designed to maintain the right tension and prevent the cable from slipping off the drum, otherwise known as “cable throw.”
- The LJ8900W is battery backup capable with the optional 485LM accessory for added access during outages.
- The operator includes a two-year motor warranty.
- You can safeguard facility access with Security+ 2.0® technology, allowing access only to registered devices.
- Remotes and openers communicate simultaneously across multiple frequencies, eliminating radio wave interference.
- The Security+ 2.0® rolling code technology ensures a new code is sent every time the remote control is used, preventing remote hacks and prohibited entry.
- Use the timer-to-close function to program your garage door to close the door after a set amount of time, ensuring doors aren't left open as vehicles move out of sight.
- The Protector System safety reversing sensor kit projects an invisible light beam across the garage door opening. It reverses the door automatically if it senses an interruption to the full closing cycle.
- The LJ8900W LiftMaster door opener uses sensing technology to prevent on-site accidents.
- These commercial safety sensors protect people and vehicles by stopping the garage door before it closes on obstructions.
- With the additional 841LM automatic door lock accessory, PosiLock integration lets the opener's internal PosiLock monitoring remain on guard to electronically counter any forced-entry attempts.
- If you want to use the door operator manually, the LJ8900W jackshaft operator includes an emergency release handle.
- The device and its components meet UL 325 safety standards, helping reduce the risk of injury and property damage.
- This door operator supports a single input for monitored entrapment protection.
