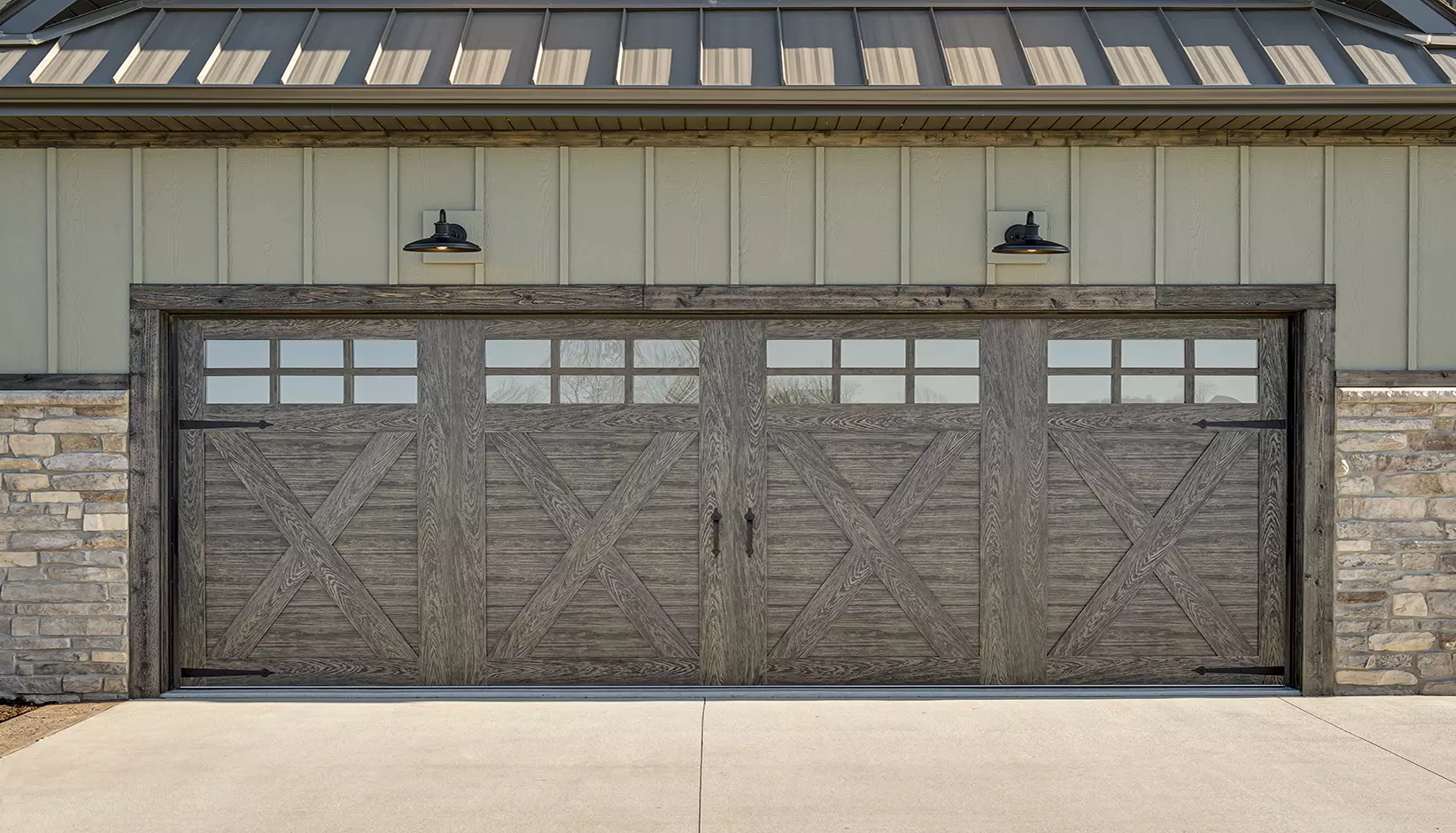

Canyon Ridge® Carriage House (4-Layer)

Insulated carriage house garage doors with faux wood-look overlays on a steel base

Clopay's Canyon Ridge® Carriage House 4-Layer garage doors add character and charm to your home. Enjoy the authentic look of swing-out coach house doors paired with the modern-day functionality of upward operation. Not only beautiful, these doors provide quiet operation and energy efficiency for years to come.
Contact us about this product
DOWNLOAD PRODUCT BROCHURE

by :
Clopay Garage Doors

Overview

Clopay Canyon Ridge® Carriage House (4-Layer) garage doors bring together the carriage house designs of the past and today's technology, functionality and energy efficiency. These doors are constructed with steel for strength and durability, and molded composite overlays for beauty and realism. These doors feature:

  • 4-layer construction: steel + insulation + steel + composite overlay.
  • Faux wood-look composite overlay available in Clear Cypress for Ultra-Grain® color options and in Mahogany for solid colors.
  • Colors include: Ultra-Grain Walnut, Ultra-Grain Medium, Ultra-Grain Slate, Black, White, and Primed. (Additional Options)
  • 2" Intellicore® polyurethane insulation with a thermal break. R-Value of 18.4.
  • WINDCODE® door reinforcement product available for high wind load applications. (Click for details)

Environmental Assurance

Clopay doors are compliant with environmental laws and regulations. Clopay doors do not contain HFCs. All Clopay doors are compliant with:

  • California SB 1013
  • Washington HB 1112 – Hydrofluorocarbon Greenhouse Gas Emissions
  • Canadian regulations amending the ozone-depleting substances and halocarbon alternatives regulations
  • New Jersey A-5583/S-3919 – Greenhouse Gas Bill




Door Designs

SERIES 1

DESIGN 11
DESIGN 12
DESIGN 13

SERIES 2

DESIGN 21
DESIGN 22
DESIGN 23

SERIES 3

DESIGN 31
DESIGN 32
DESIGN 33
DESIGN 34
DESIGN 35
DESIGN 36
DESIGN 37
DESIGN 38
For more information regarding construction options per panel style, click here

Top Sections

SOLID TOP SECTIONS

Canyon Ridge Ultra Grain TOP11
TOP11
Canyon Ridge Ultra Grain TOP11
Canyon Ridge Ultra Grain TOP12
TOP12
Canyon Ridge Ultra Grain TOP12
CANYON RIDGE ULTRA GRAIN TOP 13
TOP13
CANYON RIDGE ULTRA GRAIN TOP 13
Arch1-(Solid)-Medium_CC_UG
ARCH1
Arch1-(Solid)-Medium_CC_UG

WINDOW DESIGNS

REC11 CC UG
REC11
REC11 CC UG
REC13-Medium_CC_UG
REC13
REC13-Medium_CC_UG
REC14-Medium_CC_UG
REC14
REC14-Medium_CC_UG
SQ23-Medium_CC_UG
SQ23
SQ23-Medium_CC_UG
SQ24-Medium_CC_UG
SQ24
SQ24-Medium_CC_UG
Arch1-(Glass)-Medium_CC_UG
ARCH1
Arch1-(Glass)-Medium_CC_UG
Arch3-Medium_CC_UG
ARCH3
Arch3-Medium_CC_UG
Arch4-Medium_CC_UG
ARCH4
Arch4-Medium_CC_UG
Canyon Ridge Ultra-Grain ARCH13
ARCH13
Canyon Ridge Ultra-Grain ARCH13
Canyon Ridge LE ARCH14
ARCH14
Canyon Ridge LE ARCH14

DOUBLE TOP SECTIONS

CrARC1ASolid-MF-MH-Dbl - CR UG
ARC1A - SOLID (Double Door)
CrARC1ASolid-MF-MH-Dbl - CR UG
CrARC1AWindow-MF-MH-Dbl - CR UG
ARC1A - WINDOW (Double Door)
CrARC1AWindow-MF-MH-Dbl - CR UG
CrARC3A-MF-MH-Dbl - CR UG
ARC3A - WINDOWS (Double Door)
CrARC3A-MF-MH-Dbl - CR UG
CrARC4A-MF-MH-Dbl - CR UG
ARC4A - WINDOWS (Double Door)
CrARC4A-MF-MH-Dbl - CR UG
Canyon Ridge Ultra-Grain ARC13A
ARC13A - WINDOWS (DOUBLE DOOR)
Canyon Ridge Ultra-Grain ARC13A
Canyon Ridge Ultra Grain ARC14A
ARC14A - WINDOWS (DOUBLE DOOR)
Canyon Ridge Ultra Grain ARC14A

Colors

ULTRA-GRAIN® CYPRESS MEDIUM FINISH
ULTRA-GRAIN® CYPRESS WALNUT FINISH
ULTRA-GRAIN® CYPRESS SLATE FINISH
BLACK FINISH
WHITE FINISH
PRIMED(NO FINISH)
BRONZE*
CHARCOAL*

(W) Woodgrain Finish

*Black, White, Bronze and Charcoal finishes are only available in Mahogany.

**Primed doors can only be painted.

For more information regarding color availability, click here.

Two-tone option available. One color for the base layer (steel) and one color for the top layer (composite overlay).

Canyon Ridge 4-Layer

Custom color available through ColorBlast® program.

Hardware Designs

HANDLES

SPADE LIFT HANDLES
(included)
SPEAR LIFT HANDLES
COLONIAL LIFT HANDLES
DECORATIVE LIFT HANDLES
RING DOOR KNOCKER
ESCUTCHEON PLATE(S)
TWISTED "L" HANDLES

HINGES

SPADE STRAP HINGE
SPEAR STRAP HINGE
COLONIAL STRAP HINGE

PLATES

SPADE STEP PLATE
SPEAR STEP PLATE
COLONIAL STEP PLATE

Clopay® Canyon Ridge® Carriage House (4-Layer) garage doors are built with a strong base door and overlays. The faux wood-look composite overlays are low maintenance, durable and won't rot, warp or crack.

canyon ridge limited edition construction cutaway
intellicore header
Warmer. Quieter. Stronger.
Garage doors featuring Intellicore® insulation technology represent the ultimate smart choice for homeowners. Clopay’s Intellicore® is a proprietary polyurethane foam that is injected into a garage door, expanding to fill the entire structure. The result is a door with incredible strength, energy efficiency and durability. (Click for details)



  • Door sample shown in Medium Finish.
  • Replaceable vinyl bottom weather seal in rust free aluminum retainer helps protect against the elements.
  • High performance nylon ball bearing rollers help ensure smooth, long-lasting, quiet operation.
  • Heavy-duty 14 gauge steel hinges and brackets for smooth and worry-free operation.
  • Window grilles are removable for easy cleaning.
  • Safe-T-Bracket® - Prevents serious injury that could occur if the bottom bracket were removed with the garage door closed and under tension.
  • Rust-Prevention System - Steel skins are protected through a tough, layered coating system, including a hot-dipped galvanized layer, a protective metal oxide pretreatment and a baked on primer and top coat.
  • Product complies with 2015 IECC air infiltration requirement of 0.40 cfm/ft2 or less (IECC, Section C402.5.2)
