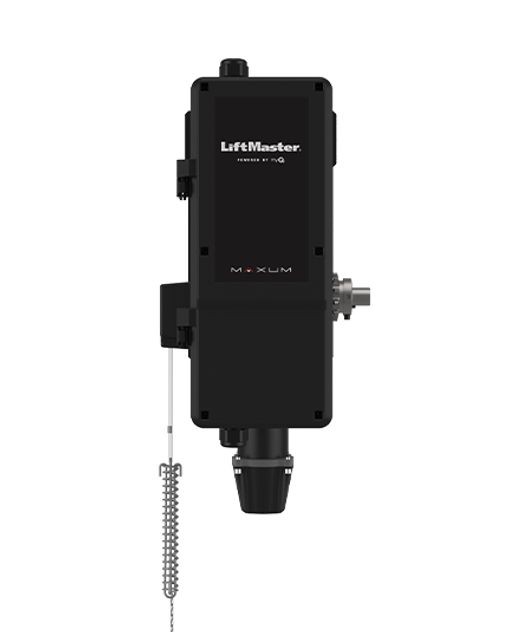

MAXUM Commercial Garage Door Operator
LiftMaster® MAXUM commercial garage door operators are top-of-the-line openers with advanced features to maximize security while providing convenient access. These door operators combine speed and intelligence with quick open times, long lifespan and connectivity through the myQ® application. With groundbreaking commercial door operator features like a floor LCD, embedded Wi-Fi connectivity and smart operation, MAXUM commercial door operators increase operational efficiency, leading to enhanced business activities. This line of door openers comes in three types — MAXUM Hoist, Jackshaft, and Trolley.Contact us about this product
- MyQ Technology enables you to securely access and control your facility operator and lights using your smartphone, tablet or computer for peace of mind.
- These smart commercial garage door operators can be set up with both myQ and myQ Facility applications.
- Embedded Wi-Fi lets you easily connect to myQ Facility software for valuable data and insights to improve door operations.
- With connected devices, you can remotely monitor and diagnose operational issues and detect potential threats before they become a liability.
- Push notifications via SMS or email allow you to see errors in real time.
- The myQ mobile app is free to download with no annual activation fee. The secure app protects your data to ensure reliable and secure performance.
- MyQ Facility offers enhanced features, including door monitoring and control, cycle counts, timely sensing throughout door travel, cloud access control, and more.
- The MAXUM door operators feature dual-voltage connections, allowing installers to select the required voltage per phase to meet jobsite requirements. Single-phase voltage connections include 120V and 240V, while three-phase voltage connections include 208V, 240V, and 480V.
- Streamlined wiring helps simplify installation with no relays or contactors, tool-less wiring connections, and intuitive, color-coded terminals.
- An optional 24V battery backup helps keep the door running when power is unavailable.
- The DC motor with soft start and soft stop extends the life of the operator and door hardware for smoother operation and reduced maintenance.
- A single unit supports right- and left-side mounting capabilities for more flexible installation.
- The MAXUM Jackshaft JDC and Release RJDC can hold sectional doors weighing up to 700 lbs., rolling steel doors weighing up to 450 lbs., and rolling steel insulated doors weighing up to 450 lbs.
- The Hoist JHDC and Trolley TDC can hold sectional doors weighing up to 2,200 lbs. The Hoist JHDC can also hold rolling steel doors weighing up to 2,200 lbs.
- The door operators’ lightweight design allows for easier single-technician installations.
- The MAXUM automatic commercial garage door operators are up to 33% faster than standard door operators, with speeds of up to 12 inches per second on sectional doors and 8 to 9 inches per second on rolling steel doors.
- Standard duty supports up to 20 cycles per hour, while continuous duty supports up to 100 cycles per hour for the TDC Trolley and JHDC Jackshaft.
- A floor-level wall controller with an LCD lets you set limits, program remotes, set up Wi-Fi, adjust speed, and more.
- The wall controller has a three-button control for open, close, and stop functions, and it provides notifications when routine maintenance is required.
- The controller uses a two-wire interface to connect to the powerhead.
- Electronic limits, four programmable inputs, and an available cable tension monitor help support flexible operation.
- Expansion cards for added functionality include an Auxiliary Relay Card and Loop Detector Card Accessory Kits.
- A five-year limited warranty applies to all door operators in this range.
- Dynamic braking comes standard on all MAXUM operators.
- The operator includes a NEMA 1 type electrical box and a heavy-duty 11-gauge steel frame with a durable powder-coat finish.
- The drive reduction system includes a 65:1 gearbox with #50 chain output. For the TDC Trolley, the system uses #48 chain output on 700 units and #41 chain output on 1,200 and 2,200 units.
- The outer components, including the metal chassis frame and E-box, protect the operator and provide strength and flexibility during installation.
- The E-box hinge design allows easy cover removal, enhancing accessibility for maintenance and repairs.
- The control board uses color-coded, push-to-release terminals for easy and secure tool-free wiring.
- The door operators are built with a high-efficiency motor and gearbox to deliver robust performance for sectional and rolling door applications.
- The emergency safety chain uses the CTM to trigger an immediate stop.
- Motor reverse action protection features help prevent on-site accidents with a quick response time.
- With each activation, the Security+ 2.0® Onboard Radio Receiver sends a fresh access code to the commercial door operator, helping limit access to authorized users.
- Security+ 2.0 virtually eliminates radio wave interference and offers an extended range.
- Receive real-time feedback and alerts to enable fast troubleshooting and reduced downtime.
- Quickly disconnect the operator from the door using the included manual release Sash Chain.
- Protect up to three entrapment points during every installation with monitored entrapment protection inputs.
